Connected Services

The Connected Services section on the Component Detail page lists all the Service Template bindings declared for this component.

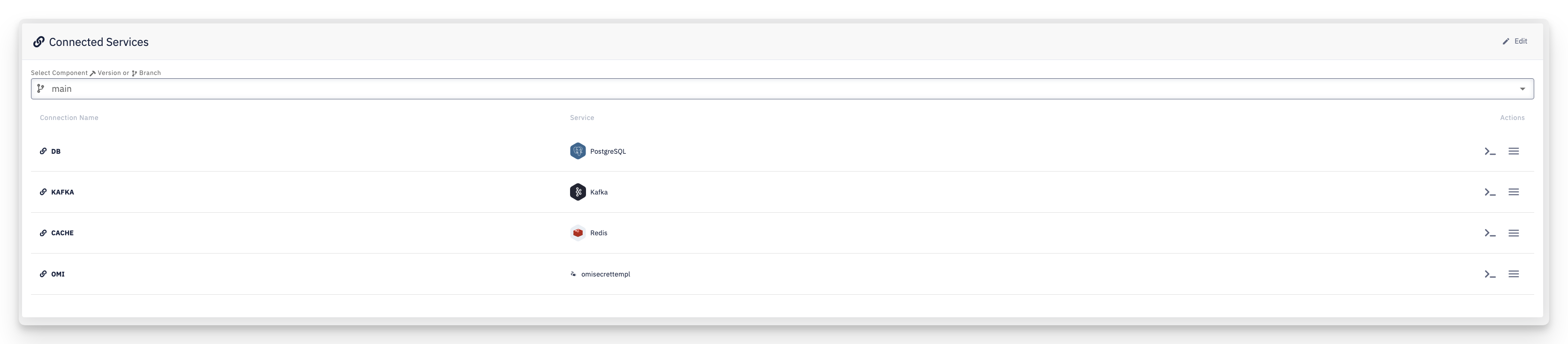

Connected Services list on the component detail

Each binding only declares that the component needs a service matching a given Service Template — it doesn't assign a concrete instance. The actual Hosted or Connected Service instance is assigned per environment in the Deployment Configuration → Connected Services, and can differ between environments.

  • Select Component Version or Branch — bindings can differ between versions/branches, same as other component settings
  • Connection Name — the name of the binding; this is also the prefix used for the environment variables it exposes (see Variable naming)
  • Service — the icon and name of the Service Template this binding requires
  • Actions — open the variables reference for this binding, or use the menu for more options
  • Edit — add, rename, or remove bindings

Viewing the exposed variables​

Click the variables icon on a binding's row to see exactly which environment variables it will expose to the component:

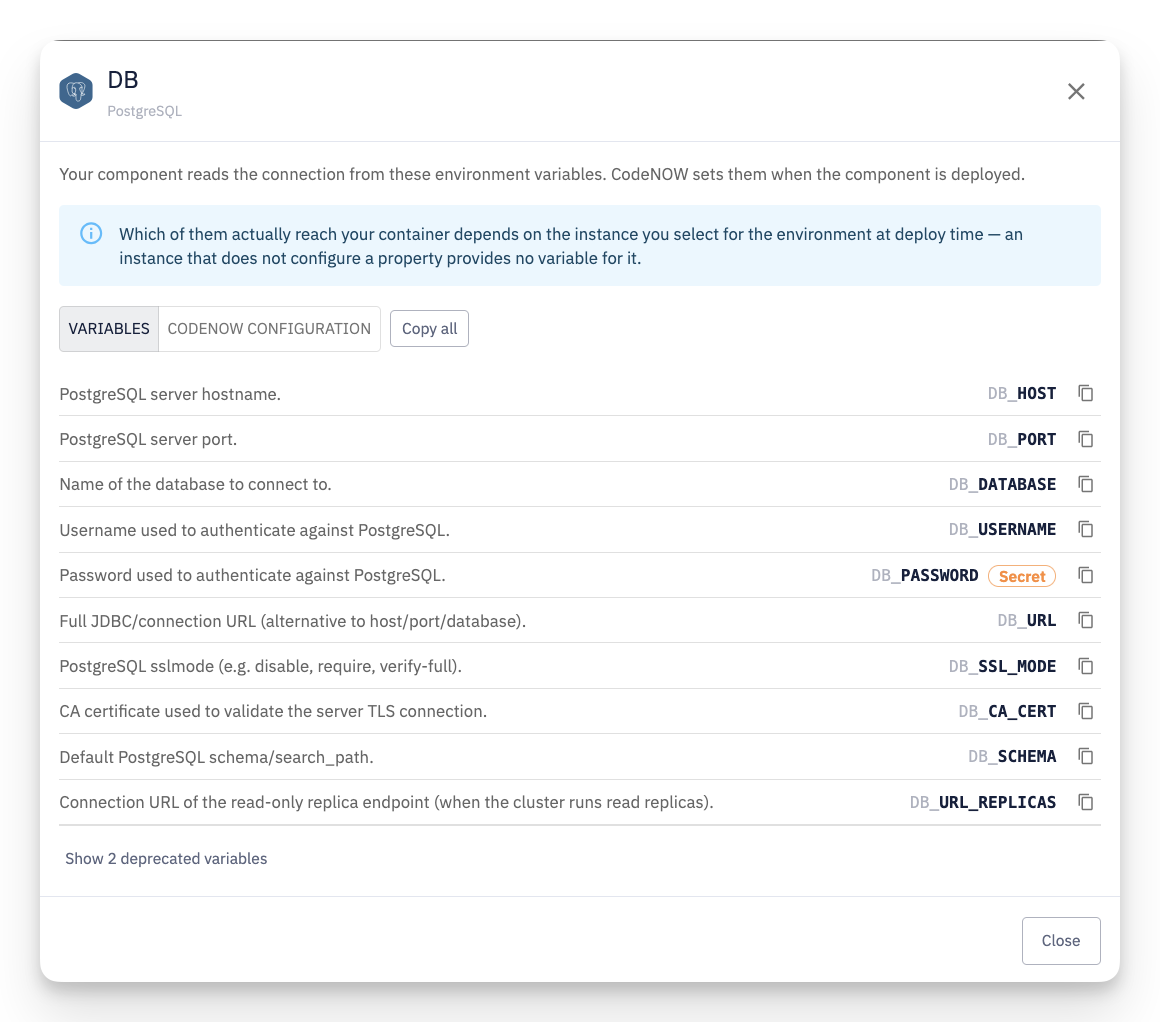

Connected Services — variables dialog
note

Which variables actually reach your container depends on the instance assigned to this binding for a given environment — an instance that doesn't configure a particular property provides no variable for it. This dialog shows what the Service Template can expose, not a guarantee that every value will be set at runtime.

  • Each row shows the variable's description, its environment variable name (following the <connection name>_<key> pattern), and a Secret badge for sensitive values
  • Show N deprecated variables reveals variables the template marks as deprecated, hidden by default
  • Copy all copies every variable name at once

Mapping to the names your code expects​

If your code already reads different variable names, switch to the CodeNOW Configuration tab:

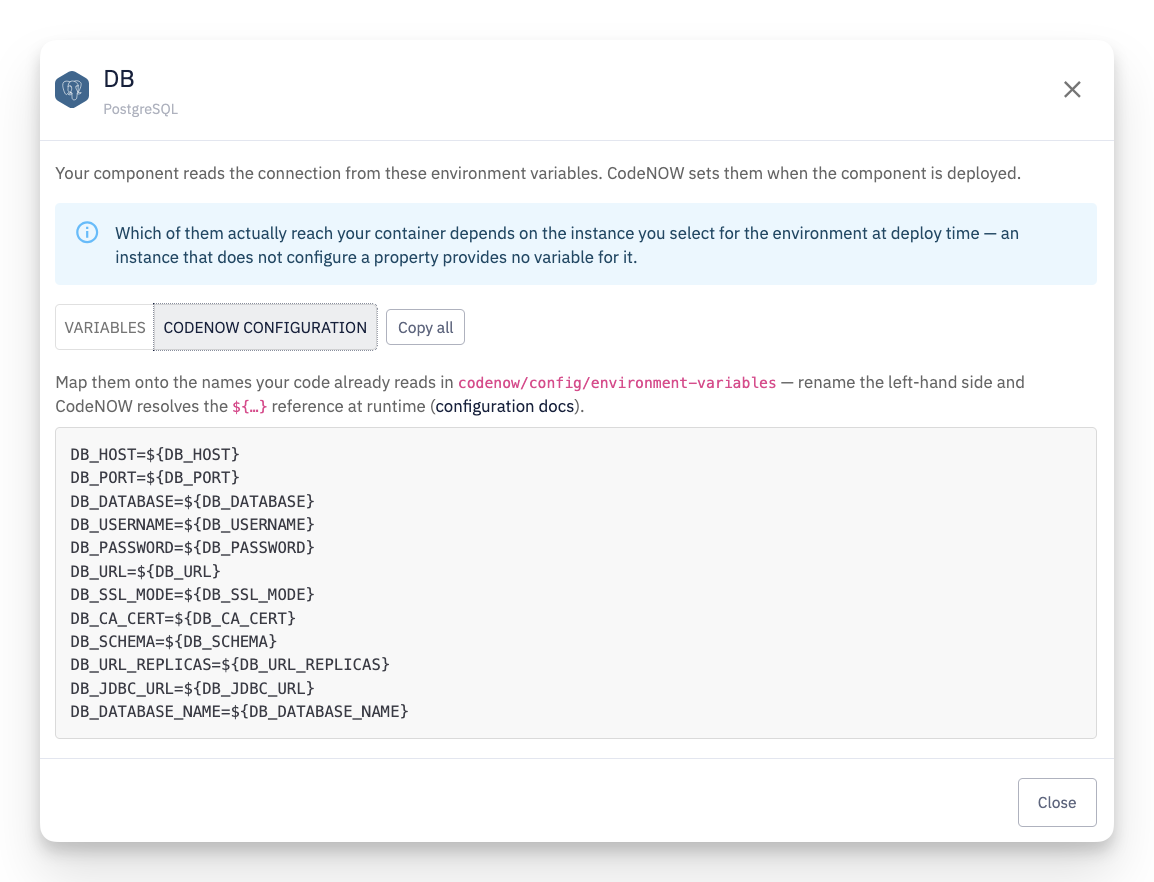

Connected Services — CodeNOW Configuration tab

This gives you a ready-to-paste snippet in the LEFT_SIDE=${RIGHT_SIDE} form for codenow/config/environment-variables: keep the right-hand ${…} references as shown, and rename the left-hand side to whatever your application already expects. CodeNOW resolves the reference at runtime — see Configuration for how this file works.

Adding, renaming, or removing a binding​

Use Edit to add a new binding, or rename/remove an existing one — each binding needs a Connection Name and a Service Template it requires. Both your own templates and the read-only CodeNOW default templates are available to pick from.

warning

Removing a binding does not remove any per-environment instance assignments left over in existing Deployment Configurations — but a Deployment Configuration created or edited afterwards will no longer offer or require an instance for it.
